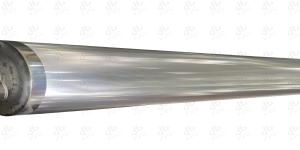

Metering Roll for Thermoset Prepreg

Detailed Description of Metering Roll

Precision Resin Metering Roll for Thermoset Prepreg Manufacturing

In a thermoset prepreg line, the Metering Roll is the roller that decides how much resin actually reaches the fiber. Positioned within the coating and transfer section, it regulates resin transfer from the coating system to the reinforcement, locking in accurate resin content, consistent film thickness, and repeatable prepreg quality.

This control matters more than it may appear. In modern prepreg manufacturing, even minor drift in resin weight shifts laminate performance, curing behavior, mechanical strength, and final component weight. The metering roll is therefore central to repeatable production quality and material waste reduction — a process gatekeeper rather than a passive guide roller.

How it works in practice:

• Hot melt prepreg process — Epoxy resin is first coated onto a transfer surface. The metering roll then removes excess resin and forms a uniform resin film before transfer onto carbon fiber or glass fiber reinforcement.

• Solvent-based prepreg production — The metering roll regulates resin pickup and coating thickness, improving impregnation consistency across the web.

Our Metering Rolls are built with precision CNC machining, high-accuracy grinding, and mirror-quality finishing, achieving outstanding concentricity, low runout, and stable rotational performance. Every roller is dynamically balanced to suppress vibration and support continuous high-speed operation.

A range of surface treatments — hard chrome plating, ceramic coating, tungsten carbide, PTFE, and DLC coatings — provides wear resistance, superior resin release, and extended service life. The result is a roller suited to demanding composite manufacturing environments: carbon fiber prepreg, glass fiber prepreg, aerospace composites, wind turbine blade materials, automotive lightweight structures, and high-performance industrial laminates.

Key Features of Metering Roll

Precise Resin Thickness Control

The Metering Roll regulates resin film thickness to hold resin content consistent throughout production.

Benefits:

• Uniform resin distribution

• Accurate resin weight control

• Improved laminate consistency

• Reduced material waste

• Better product repeatability

High-Precision Roller Manufacturing

Each roller is produced using advanced CNC machining and precision grinding technology.

Features include:

• Excellent cylindricity

• Low radial runout

• High concentricity

• Precision dynamic balancing

• Stable rotation at high speed

These characteristics ensure smooth production and consistent coating performance.

Superior Surface Engineering

Different resin systems demand different surface characteristics.

Available surface options:

• Mirror Polishing

• Hard Chrome Plating

• Ceramic Coating

• Tungsten Carbide Coating

• PTFE Non-Stick Coating

• DLC (Diamond-Like Carbon) Coating

These treatments reduce resin adhesion, improve release performance, simplify cleaning, and extend roller life.

Excellent Chemical and Wear Resistance

The Metering Roll operates continuously in contact with epoxy resin, curing agents, and processing chemicals.

Premium materials and coatings provide:

• Outstanding corrosion resistance

• Excellent abrasion resistance

• Long-term dimensional stability

• Reduced maintenance frequency

• Lower operating costs

High-Speed Production Capability

Precision balancing and optimized roller geometry allow stable operation on high-speed prepreg production lines.

Advantages include:

• Low vibration

• Stable resin transfer

• Smooth coating performance

• Higher production efficiency

• Improved process reliability

Customized Design Solutions

Every prepreg production line has unique process requirements.

Customized options include:

• Roller diameter

• Face length

• Surface finish

• Surface coating

• Shaft configuration

• Bearing arrangement

• Heating or cooling options

• Integrated temperature monitoring

Our engineering team provides tailor-made solutions for both new equipment manufacturers and retrofit projects.

Technical Specifications of Metering Roll

Typical Applications & Industry Scenarios

Our Metering Rolls are widely used across composite manufacturing processes, including:

Thermoset Composite Manufacturing

• Carbon Fiber Epoxy Prepreg Production

• Glass Fiber Prepreg Lines

• Aramid Fiber Prepreg Manufacturing

• Hot Melt Prepreg Systems

• Solvent-Based Prepreg Lines

Advanced Composite Applications

• Aerospace Structural Composites

• Automotive Lightweight Components

• Wind Turbine Blade Manufacturing

• Hydrogen Storage Pressure Vessels

• Marine Composite Structures

• Defense Composite Materials

• Sporting Goods

• Industrial Composite Laminates

Frequently Asked Questions

Q1. What is the function of a Metering Roll in prepreg production?
A Metering Roll regulates the amount of resin transferred from the coating system to the reinforcement material. It removes excess resin and forms a uniform resin film, ensuring accurate resin content, consistent film thickness, and repeatable prepreg quality.

Q2. How does the Metering Roll differ from a coating roll?
The coating roll applies resin onto the transfer surface, while the metering roll controls how much resin remains and is transferred to the fiber. Together they define the final resin film thickness and resin content of the prepreg.

Q3. Which resin systems are compatible with your Metering Rolls?
Our rollers are suitable for epoxy, BMI, phenolic, cyanate ester, and other thermosetting resin systems commonly used in aerospace, automotive, wind energy, and industrial composite manufacturing.

Q4. What surface treatments are available?
Available options include mirror polishing, hard chrome plating, ceramic coating, tungsten carbide coating, PTFE non-stick coating, and DLC coating, selected according to resin system and release requirements.

Q5. Can the roller be customized for our prepreg line?
Yes. We provide complete customization, including roller diameter, face length, surface finish, coating, shaft configuration, bearing arrangement, heating or cooling options, and integrated temperature monitoring, according to your production line specifications.
