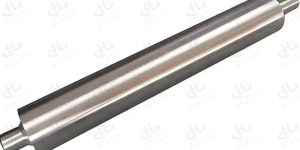

Applicator Roll for Thermoset Prepreg

Precision Resin Applicator Roll for Thermoset Composite Manufacturing

The Applicator Roll sits at the point in a thermoset prepreg line where resin first meets the web. Its job is deceptively simple — pick up resin from the coating system and transfer a controlled, uniform layer onto the reinforcement material or transfer film — but the outcome governs stable resin distribution, accurate resin content, and consistent prepreg quality.

Where it fits in the hot melt process. Molten epoxy resin is supplied to the coating section, where the Applicator Roller picks it up and transfers it evenly to release paper, carrier film, or directly to the fiber reinforcement. Paired with the Metering Roll, it regulates resin thickness and holds the target resin content consistently across the entire product width. The two rollers divide the work: the Applicator Roller delivers resin, the Metering Roll decides how much stays.

Why prepreg applicator rolls are different. Standard industrial coating rollers are not built for this duty. Prepreg applicator rolls require extremely high machining precision, excellent concentricity, and optimized surface properties. Even slight variation in roller geometry or surface finish translates into uneven resin coating, thickness variation, or excessive resin consumption — defects that propagate through impregnation and into the final laminate.

How we build them. Our Applicator Rolls are manufactured using advanced CNC machining, precision grinding, and dynamic balancing technology. Each roller undergoes strict quality inspection to verify low runout, excellent roundness, and stable operation under continuous high-speed production conditions.

Surface engineering for different resin systems. To accommodate different resin systems and processing requirements, a variety of surface treatments are available: hard chrome plating, ceramic coating, tungsten carbide coating, PTFE non-stick coating, and DLC (Diamond-Like Carbon) coating. These options improve resin transfer efficiency, reduce resin build-up, simplify cleaning, and extend service life.

Designed for demanding composite manufacturing environments, our Applicator Rollers are widely used in carbon fiber prepreg production, glass fiber prepreg lines, aerospace composite materials, automotive lightweight components, wind energy composites, sporting goods, and other advanced composite applications.

Key Features of Applicator Roll

Accurate Resin Application

The Applicator Roll evenly transfers resin to the substrate, ensuring a stable and uniform coating layer.

Benefits:

• Consistent resin distribution

• Uniform coating thickness

• Improved fiber wet-out

• Reduced dry spots

• Enhanced prepreg quality

Precision Manufacturing

Produced with advanced CNC machining and precision grinding technology.

Features include:

• High concentricity

• Low runout

• Excellent cylindricity

• Precision dynamic balancing

• Stable high-speed operation

These characteristics contribute to superior coating consistency and reliable production performance.

Excellent Resin Transfer Efficiency

The optimized roller surface promotes efficient resin transfer while minimizing residue.

Advantages include:

• High resin transfer efficiency

• Stable coating performance

• Reduced resin waste

• Easy cleaning

• Improved production efficiency

Premium Surface Treatments

Various surface engineering solutions are available to match different resin systems.

Available options:

• Mirror Polishing

• Hard Chrome Plating

• Ceramic Coating

• Tungsten Carbide Coating

• PTFE Non-Stick Coating

• DLC Coating

These treatments enhance wear resistance, corrosion resistance, and resin release performance.

Long Service Life

Manufactured from premium alloy steel or stainless steel with high-performance surface coatings, our Applicator Rollers provide:

• Excellent wear resistance

• Superior corrosion resistance

• Stable dimensional accuracy

• Reduced maintenance requirements

• Extended operational lifetime

Fully Customized Design

We provide complete customization according to customer production requirements.

Customization options include:

• Roller diameter

• Face length

• Shaft configuration

• Surface finish

• Surface coating

• Heating or cooling options

• Bearing assembly

• Installation dimensions

Each roller is designed for seamless integration into new or existing prepreg production lines.

Technical Specifications of Applicator Roll

Typical Applications

Thermoset Prepreg Manufacturing

• Carbon Fiber Epoxy Prepreg Production

• Glass Fiber Prepreg Production

• Aramid Fiber Prepreg Manufacturing

• Hot Melt Prepreg Lines

• Solvent-Based Prepreg Systems

Composite Material Processing

• Resin Transfer and Film Coating

• Release Film Coating

• Carrier Film Coating

• Composite Lamination Systems

Advanced Composite Industries

• Aerospace Composite Components

• Automotive Lightweight Structures

• Wind Turbine Blade Manufacturing

• Hydrogen Storage Pressure Vessels

• Marine Composite Structures

• Sporting Goods

• Defense Composites

• Industrial Composite Materials

Frequently Asked Questions

Q1. What does the Applicator Roller do in a prepreg line?
It picks up resin from the coating system and transfers a controlled, uniform layer onto release paper, carrier film, or fiber reinforcement. Together with the Metering Roll, it determines resin content and coating uniformity across the full product width.

Q2. How is the Applicator Roller different from the Metering Roll?
The Applicator Roller delivers resin to the web; the Metering Roll regulates how much resin remains. They work as a pair — one handles transfer, the other handles thickness control.

Q3. Why can't a standard industrial coating roller be used?
Prepreg applicator rollers require much higher machining precision, concentricity, and surface quality. Small geometry or finish deviations cause uneven coating, thickness variation, and excess resin consumption that a standard roller cannot control.

Q4. Which surface treatments are available?
Mirror polishing, hard chrome plating, ceramic coating, tungsten carbide coating, PTFE non-stick coating, and DLC coating — selected according to resin system and release requirements.

Q5. Can the roller be customized for our production line?
Yes. We customize roller diameter, face length, shaft configuration, surface finish, coating, heating or cooling options, bearing assembly, and installation dimensions for both new equipment and retrofit projects.
