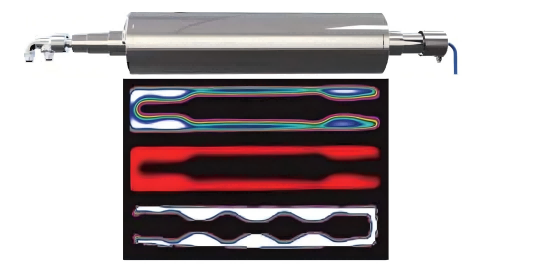

Induction Heating Embossing Roller for Anti-fake Printing

Description of Induction Heating Embossing Roller:

During the production of packing material for various top-grade cigarettes, liquor and cosmetics, the technology of anti-fake printing is usually adopted. Embossing roller is the core component of anti-fake printing machine. There are series products of induction heating embossing roller: including single pattern roller, which can supply uniform temperature; double rollers with seamless pattern,which is partly cooled on roller surface; and high pressure pattern roller. Compared with traditional thermal oil heating roller, induction heating embossing roller has more uniform temperature, with energy consumption reduced for about 50~ 70%.

Specification of Induction Heating Embossing Roller:

Single pattern roller:

Dimension Φ150~250mm×L800~1600mm

Temperature 130~250℃±1.5℃

Linear Speed max 150m/min

Linear pressure: 200~300psi

Surface Treatment :Hard-chrome plating,mirror finish

Double roller with seamless pattern:

Dimension Φ150~250mm×L800~1600mm

Temperature 130~250℃±1.5℃

Linear Speed max 150m/min

Linear pressure: 400~500psi

Surface Treatment :Hard-chrome plating,mirror finish

High pressure pattern roller:

Dimension Φ150~250mm×L800~1600mm

Temperature 130~300℃±1.5℃

Linear Speed max 150m/min

Linear pressure: 800~1000psi

Surface Treatment :Hard-chrome plating,mirror finish

Induction heating Embossing roller:

Dimension Φ300~1500 mm×L 900~4000 mm

Temperature max 250℃

Linear Pressure ; max 200kN/m

Surface Treatment :

Hard-chrome plating,mirror/polished finish
