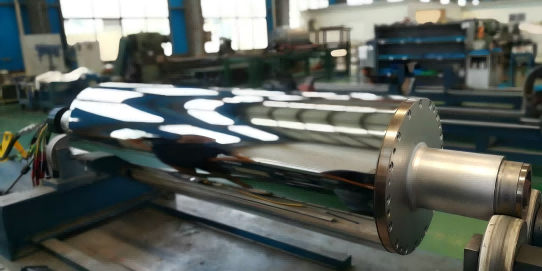

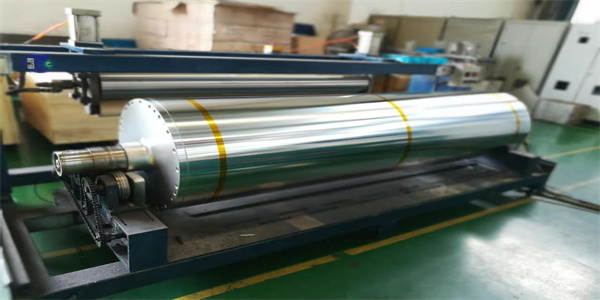

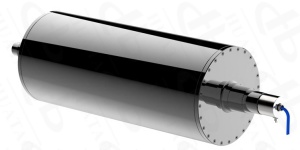

Induction Heating Calender Roller for Speciality Paper

Description of Induction Heating Calender Roller:

In paper making process,steam or thermal oil are usually used to heat rollers.However,when a high load is required,it will result lower paper strength,induction heating calender roller,with the advantage of uniform temperature,clean and energy saving,can increase the output and improve the quality,as well as solve the problem of high energy consumption and oil leakage.

Specification of Induction Heating Calender Roller:

Dimension: φ1000~1500mm×L1000~3000mm
Temperature :max 300℃
Linear speed: max 1000m/min
Linear Pressure: max 400kN/m
Surface Treatment:Hard-chrome plating/mirror finish

Application of Induction Heating Calender Roller：

Household paper
Cultural paper
Specialty paper （kevlar paper, carbon paper ,aerogel paper）
