Coating Proofing Printers

Description of Coating Proofing Printers
Coating proofing printers are designed for professional printing, packaging, and design industries to accurately simulate final print jobs, test different coatings, or create contract proofs before mass production.

In today's efficient production methods, Roll-to-Roll coating, printing, and lamination are being used in various new materials, new products, and new technology areas. Especially the production methods of functional film as substrate, masterbatch coating, micro-nano embossing, and printing and lamination.

Flexible display: Application of PI (polyimide) transparent films and micro-nano structures, and verification of the possibility of quantum dot printing production.
Flexible circuit boards: Design and material manufacturing of circuit boards.
Flexible batteries: Charging speed and energy density of lithium batteries.
Carbon composite materials: Application of coating fluids and composite technologies.

Design Features and Functions of Mini-star Coating Proofing Printers
Roll-to-Roll (R2R) unwinding and winding
Precision coating
Laser micro-nano level printing
Drying and lamination

Application Scenarios of Mini-star Coating Proofing Printers
Research institutes, laboratories of well-known enterprises, teaching and R&D institutions, and business prototyping that have R&D needs for functional new materials.
Cleanrooms (dust-free labs)
Training of R&D personnel
Material development
Manufacturing technology
Contract proofs before mass production

Basic Parameter of Mini-start Coating Proofing Printer
Coating direction: Front side of the substrate
Coating substrates: Film materials such as PET, BOPP, and paper materials
Substrate thickness: 25-100μm
Film width: 100-250mm
Guide roller length: 270mm
Maximum mechanical speed: 30m/min
Coating speed: 0.5-30m/min (depending on process conditions)
Speed ratio of coating speed to coating roller speed during reverse coating: 0.8-2.
Applicable solvents: Water-based solvents, toluene, ethyl acetate
Maximum diameter of unwinding/winding rolls: Ф200mm
Core specification: Ф75mm (3 inches)
Tension control range: 1-5Kg (full width)
Oven length: ≈700mm
Oven heating method: Electric heating with hot air drying
Oven temperature: Max. 180℃
Oven temperature accuracy: ±5℃
UV curing (optional): Mercury lamp, ≈2kw/365nm
Overall machine control: Centralized control via PLC and human-machine interface (HMI)
Power supply: Three-phase AC 380V/50Hz
Total power: ≈7kw (excluding UV)
Machine dimensions (L×W×H): 1450×900×950mm

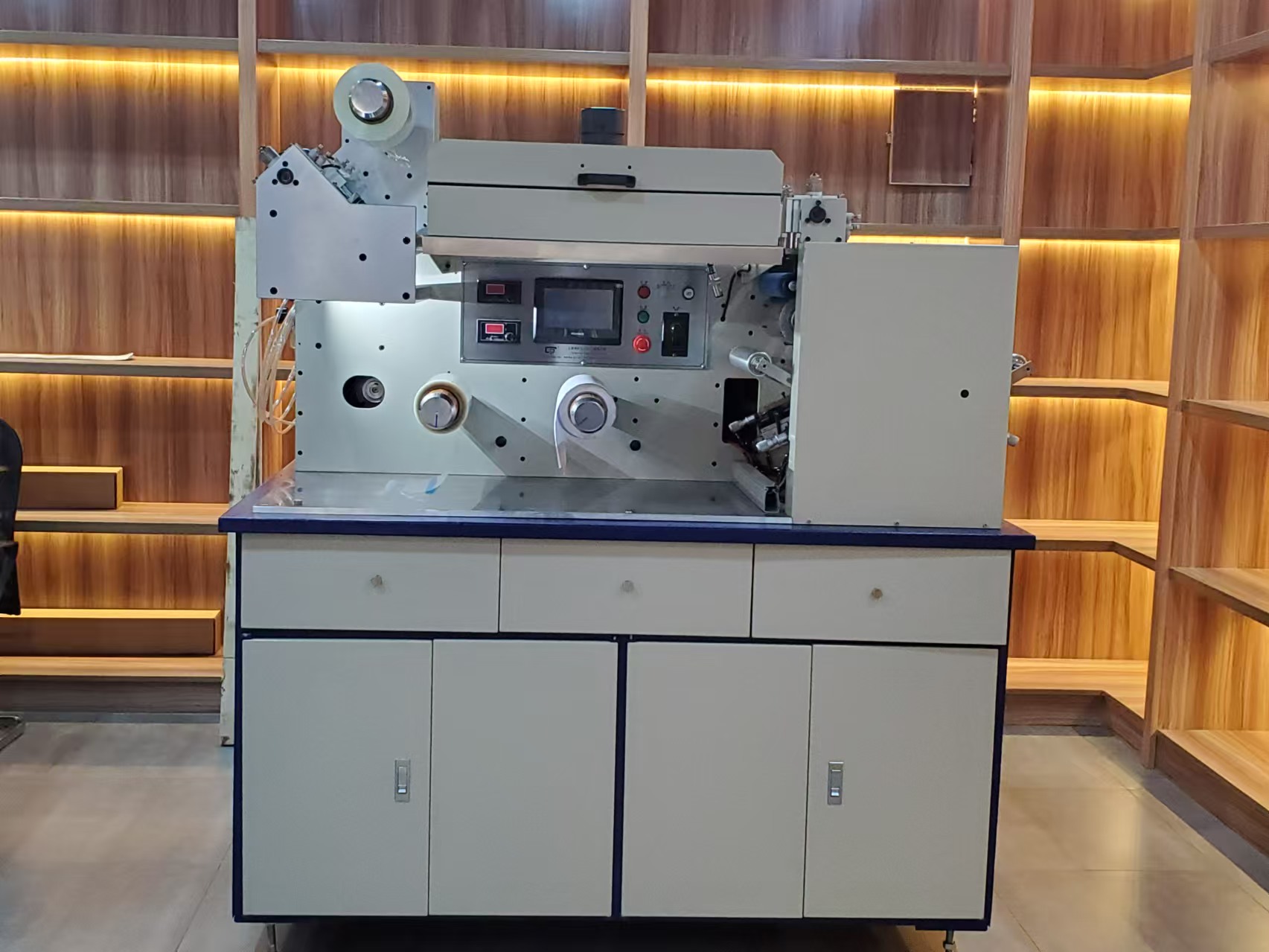

Introduction to Prototype Physical Diagram of Mini-star Coating Proofing Printers
Infrared hot air drying
Double unwinding/lamination materials
Built-in sample inspection light source/antistatic function
Tension control/unwinding and winding
Samples of coating, printing, and micro-nano embossing
Operation units for coating, printing, embossing, etc.
Operation/display panel
Data/material storage cabinet
